TOOL TURNER NoWTURN

Optimize your manufacturing processes and increase occupational safety by using powerful tool handling systems.

Turning of tools by up to 90°

Applicable for tools up to 20 tons (most powerful variant)

Maintenance, assembly and disassembly on the work surface

Drive via high-quality round steel chains

Mobile movable via forklift or crane

Six variants for different mold sizes and loads

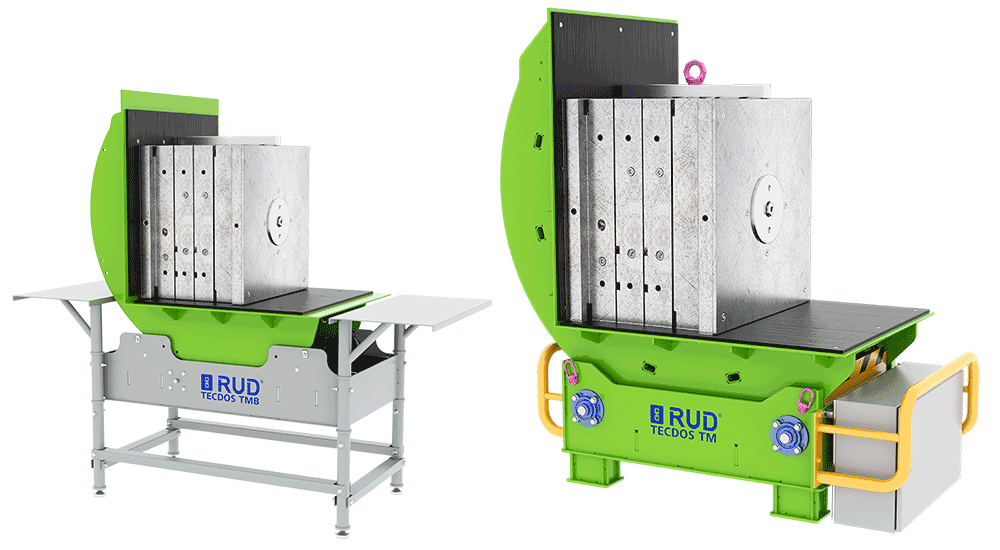

NoWTURN-TMB and NoWTURN-TMBE

For small tools weighing up to 2.5 tons and maximum dimensions of up to 800 x 800 x 800 mm.

For safe and flexible working, the turning frame can be stopped in any swiveled position

The drive is carried out by means of a cordless screwdriver, therefore no use of electric, pneumatic or hydraulic auxiliary power is necessary

Applicable for tools up to 2.5 tons and dimensions up to 800 x 800 x 800 mm

Adjustable table height due to adjustable table feet

Optionally available: 1) Two PE plates for safe holding and protection of the tools and 2) Two side shelves at table height.

Variants:

NoWTURN-TMB

Item no.: WA0100

Table support surface: 800 x 800 mm
Max load: 2,5 tons
Dead weight: 270 kg

NoWTURN-TMBE

Item no.: WA0101

NoWTURN-T supplemented by:
1) Two PE plates to securely hold and protect the tools and
2) Two side shelves at table height

NoWTURN-TM

For tools weighing up to 20 tons and maximum dimensions up to 2000 x 2000 x 2000 mm.

Safe turning by avoiding a tipping point

Due to the low support surface, maintenance can be carried out directly on the mold turner

Standard with acoustic warning signal during the turning process

Applicable for tools up to 20 tons and maximum dimensions up to 2000 x 2000 x 2000 mm

Optionally available: Two PE plates for secure holding and protection of the tools

Variants:

NoWTURN-TM 800x1000mm/5.0t

Item no.: WA0150

Table support surface: 800 x 1000 mm
Max load: 5 Tonnen
Dead weight: 600 kg
Options: PE plates

NoWTURN-TM 800x1300mm/10.0t

Item no.: WA0120

Table support surface: 800 x 1300 mm
Max load: 10 Tonnen
Dead weight: 1050 kg
Options: PE plates

NoWTURN-TM 1300x1300mm/10.0t

Item no.: WA0140

Table support surface: 1300 x 1300 mm
Max load: 10 Tonnen
Dead weight: 1150 kg
Options: PE plates

NoWTURN-TM 1500x1800mm/16.0t

Item no.: WA0130

Table support surface: 1500 x 1800 mm
Max load: 16 Tonnen
Dead weight: 3700 kg
Options: PE plates

NoWTURN-TM 2000x2000mm/20.0t

Item no.: WA0180

Table support surface: 2000 x 2000 mm
Max load: 20 Tonnen
Dead weight: 4000 kg
Options: PE plates
